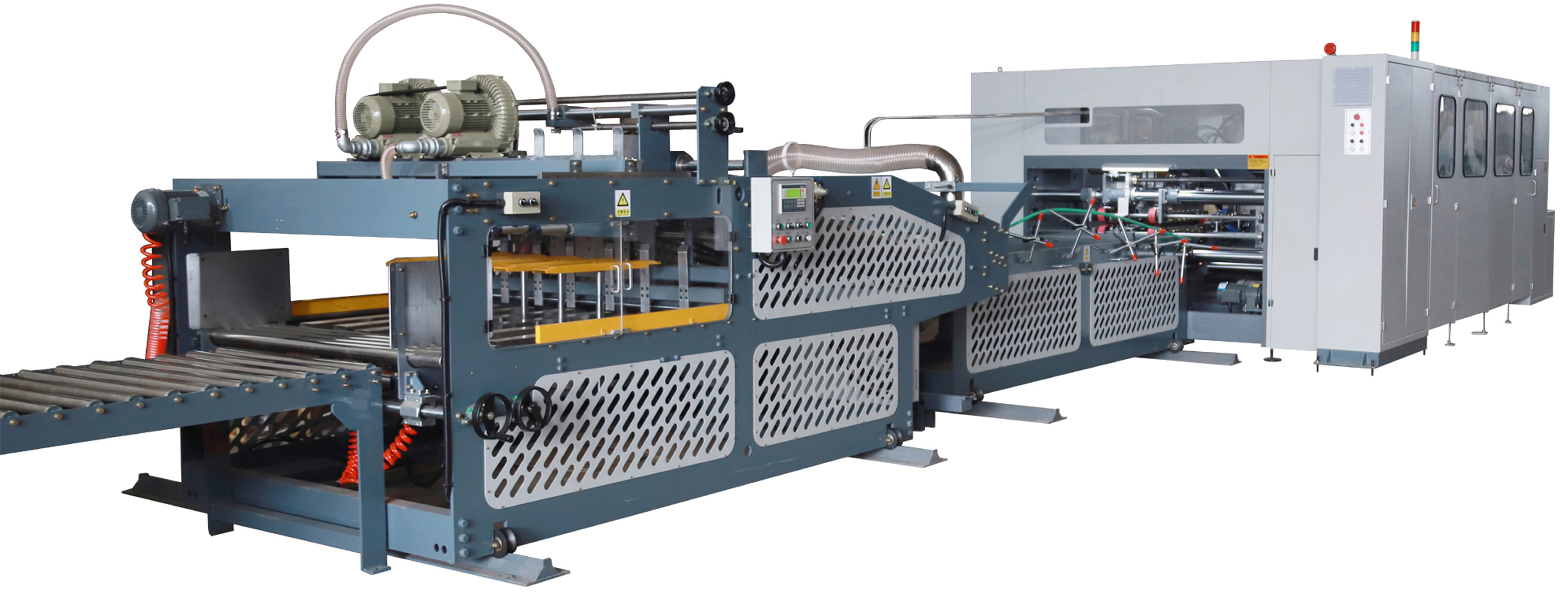

Automatic Stitcher Gluer Machine
|

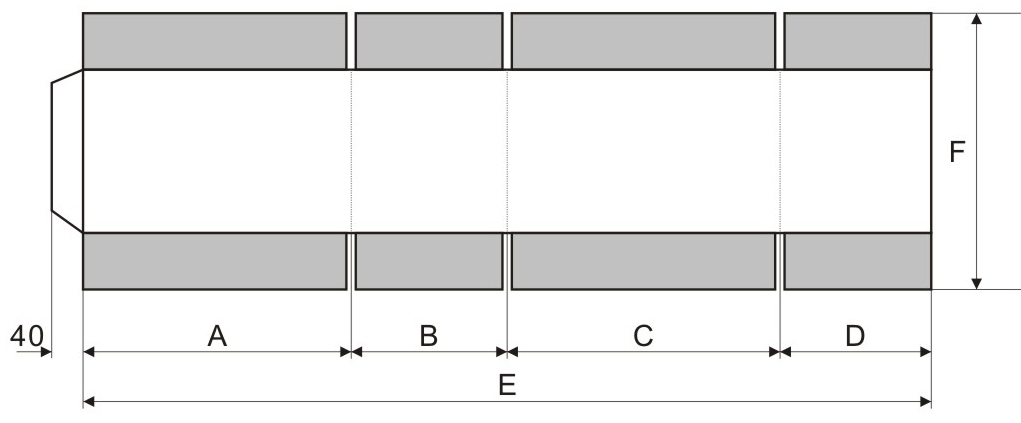

A |
B |
C |
D |
|
Min 200 |
Min 200 |
Min 200 |
Min 200 |
|
Max 650 |
Max 650 |
Max 650 |
Max 650 |
|
E |
F |
||
|
Min 800 |
Min 300 |
||
|
Min 2400 |
Min 850(950) |
||
|
Model |
Y-90 |
Y-95 |
|
Max feeding size |
2400x850mm |
2400x950mm |
|
Min feeding size |
800x300mm |
800x300mm |
|
Corrugated sheet |
3 and 5 layer |
3 and 5 layer |
|
Max stitching speed |
100pcs/min (3 wire stitches)
90pcs/min (4 wire stitches)
80pcs/min (5 wire stitches)
|
90pcs/min (3 wire stitches)
80pcs/min (4 wire stitches)
70pcs/min ( 5 wire stitches)
|
|
Max gluing speed |
100pcs/min |
90pcs/min |
|
Stitching head speed |
800 stitches/min |
800 stitches/min |
|
Stitching head |
Fixed type |
Fixed type |
|
Stitching type |
Single and double |
Single and double |
|
Stitching wire |
1.8-2.0mm |
1.8-2.0mm |
|
Min stitching distance |
20mm |
20mm |
|
Slanting of the stitch |
45º |
45º |
|
Total power |
50kw |
50kw |
|
Voltage |
380V, 50HZ, 3phase |
380V, 50HZ, 3phase |
|
Dimension |
14500 x 3700 x 2100mm |
15000 x 3700 x 2100mm |
|
Weight |
15tons |
15.5tons |
- Automatic stitcher gluer machine used in food carton box, fruit carton box and industry carton box folding gluing and sttiching.
- The stitching head life is one hundred million stitching times. Punching head life is fifty million punching times.
- The stitching head speed is 800 stitching times per minute.
- Automatic vacuum belt lead edge feeder.
- The whole machine installed 8 sets of Mitsubishi servo motors.
- PLC program system is Mitsubishi.
- Order memory is 100 sets of sheets.
